Leica iCON iCS20
Simple 3D measurement
The Leica iCON iCS20 is an easy-to-use 3D measurement and layout sensor, serving a wide variety of professional applications.
It is particularly suitable for users who want to move from traditional, manual measurement and layout methods to digital workflows. The visual measurement technology always displays the current situation and prevents anything from being forgotten. Automated workflows, as well as the intuitive, industry-specific software Leica iCON trades, also reduce measurement complexity to a minimum.
Areas of application:

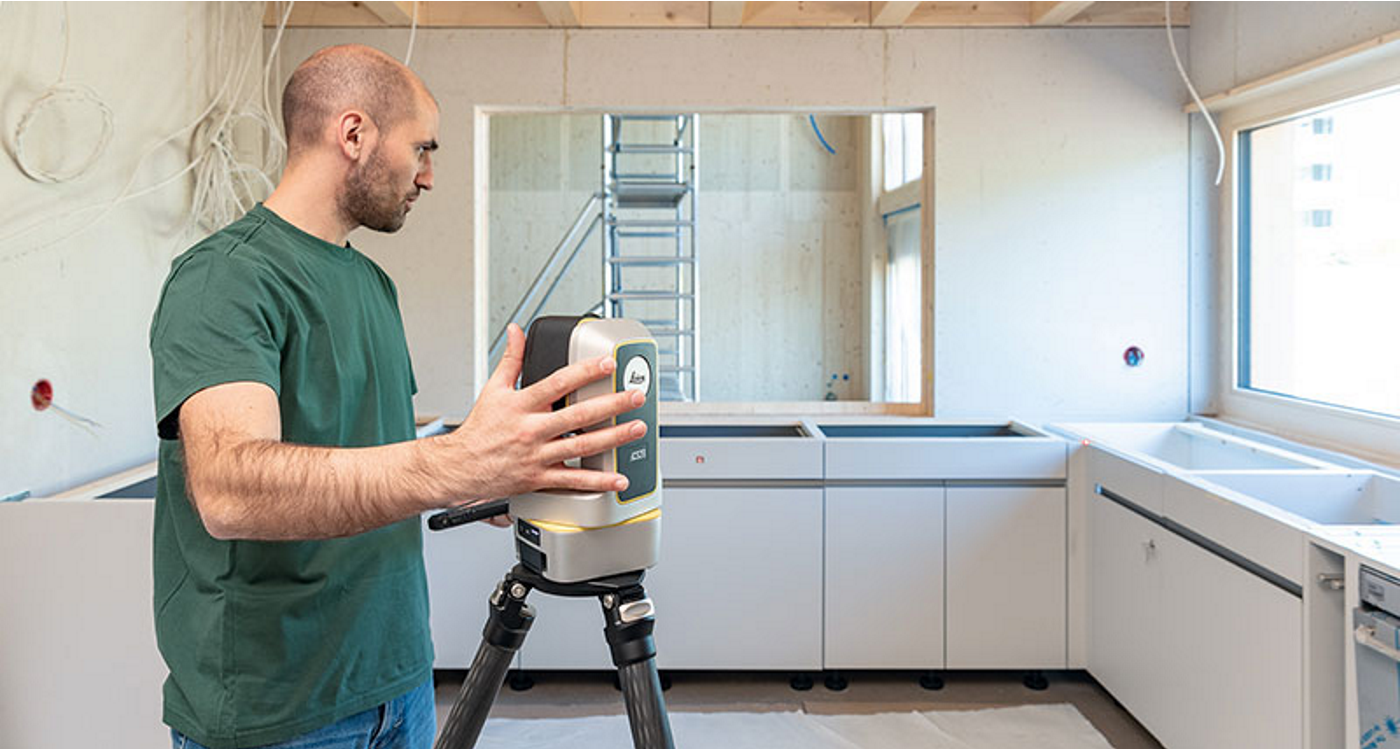

As-built measurements with all details for interior finishing, e.g. kitchen building, staircase construction, window and door installation
MEP layout of hanger locations for HVAC and duct work, inserts and slits for sheet metal work
Fully automatic layout routines of points on floor or ceiling and lines for pipe wall penetrations
Your advantages:
One-person operation reduces staff resources and increases productivity
Simplified layout and measurement process due to visual measurement technology
Quickly ready for use due to the automated set-up process
Easy relocation with Leica vTargets
Fast and efficient data capturing with all details for interior finishing
Automated line and area scans for curved or complex objects
Easy-to-use, industry-specific Leica iCON trades software for efficient workflows, seamless data flow and clear documentation
iCS20 Key Features
-

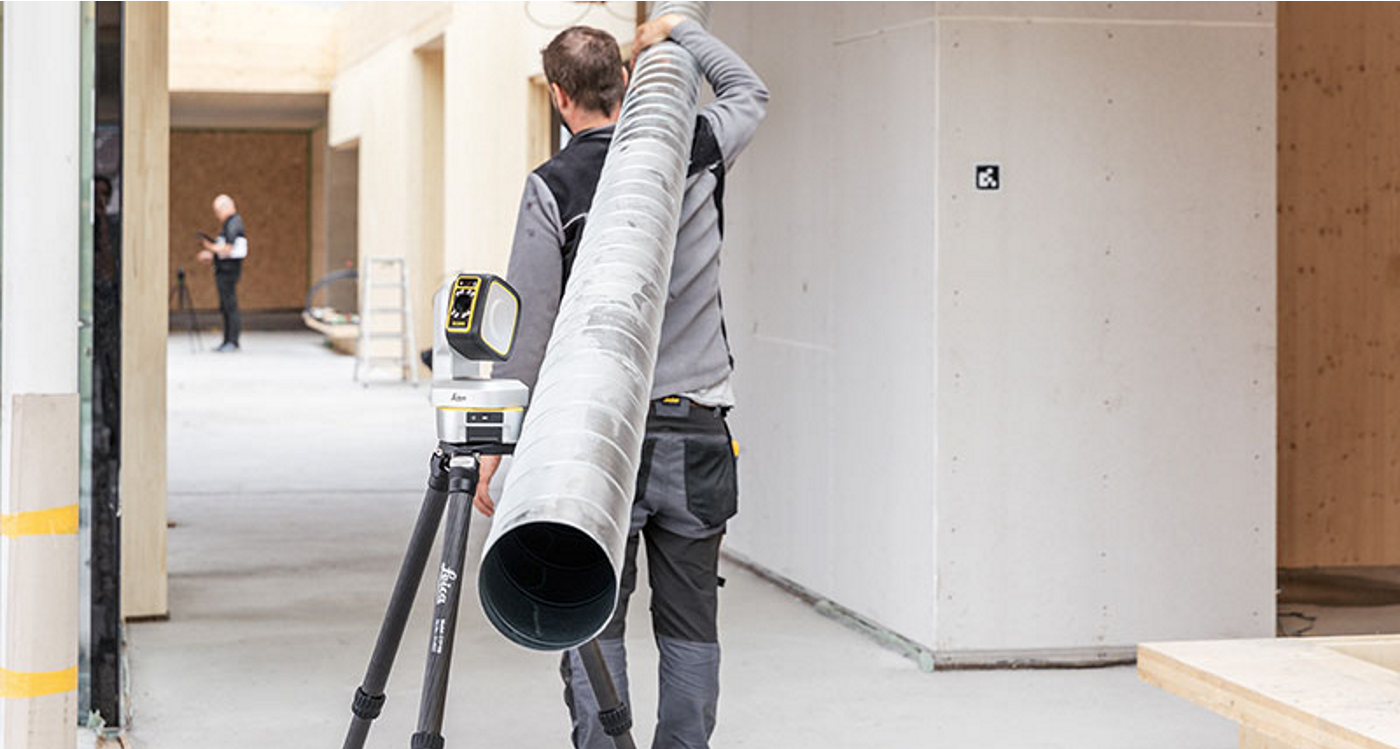

Due to its compact size and wireless connectivity, you can carry the Leica iCON iCS20 onto site, set it up, and operate it on your own – without the need for a second person. Smart features such as the ‘quick-mount’ tripod or the ‘auto-setup’ process ensure that the device is ready to use in just a few steps and help to avoid mistakes.
-
The visual-based target detection and the automated process greatly simplify the relocation of the device. New Leica vTargets are automatically detected. This saves you time, avoids errors and allows you to quickly continue your layout and measurement tasks even after a break. It also ensures best line of sight by always placing the device close to the working area.
-
The camera live stream delivers extremely sharp images. This allows you to see on the tablet what the Leica iCON iCS20 sees and to select any point accurately. Due to the unique high-speed motor, the construction sensor then locates that point very quickly with the bright pointing laser, shortening layout and measurement processes.
-
Active and continuous monitoring of the unit's position automatically detects even the smallest movement and triggers an alarm. This avoids inaccuracies and expensive mistakes, allowing you to work more environmentally friendly.
-

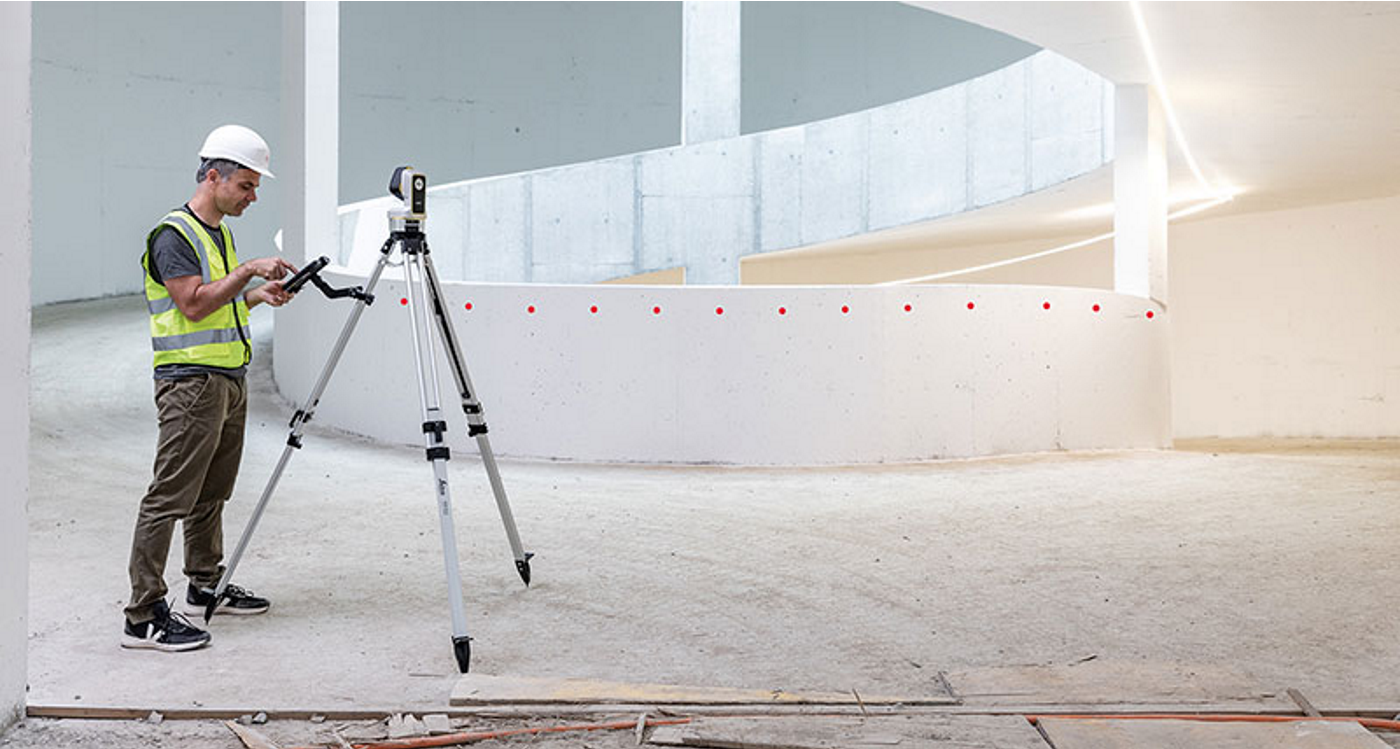

This function simplifies capturing complex contours, such as door arches or rooms with uneven walls. Define the measurement range by a start and end point, as well as the measurement interval. The Leica iCON iCS20 automatically scans the measurement area and provides highly accurate results.
Leica iCON iCS20 – Features

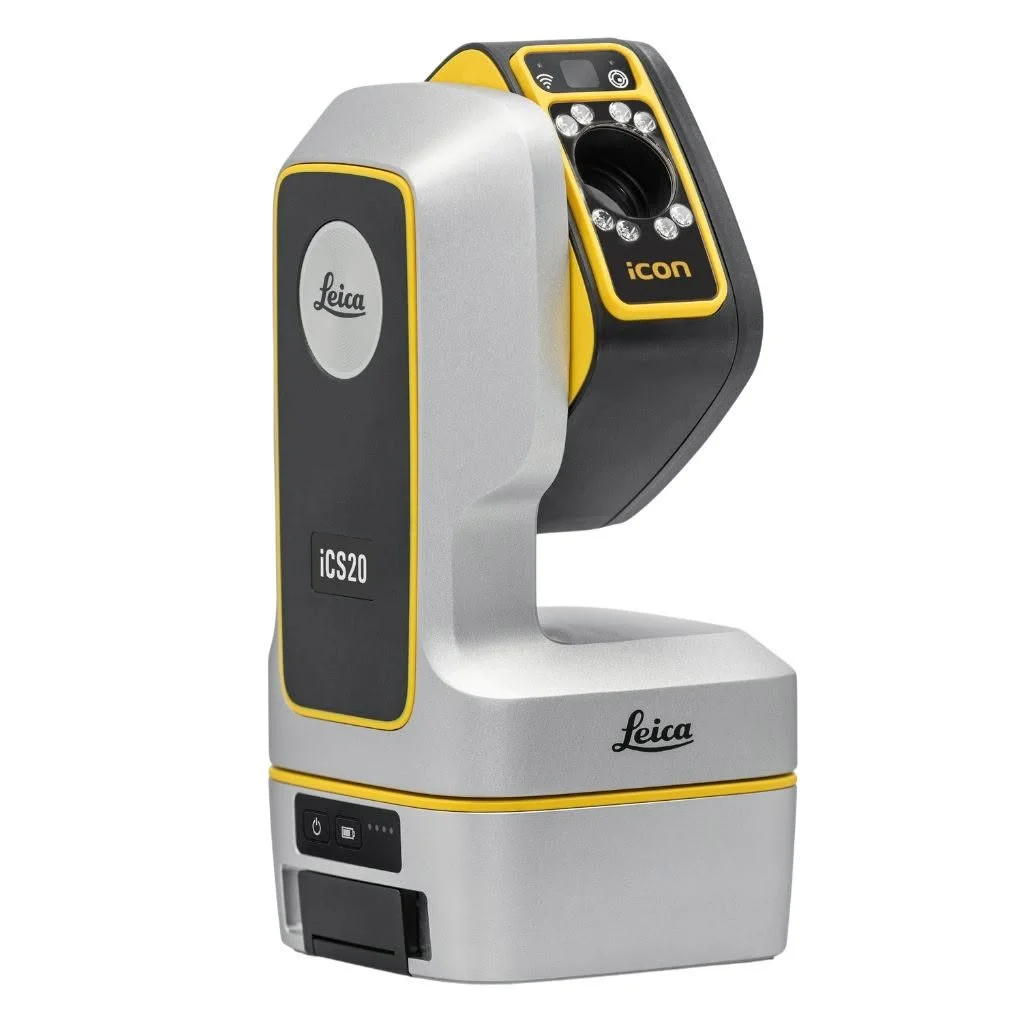

Very compact size
Measuring range: 0.3 m - 50 m (250 m optional)
Angular accuracy: 5”
3D point accuracy (without reflector): 1 mm @ 10 m, 2.5 mm @ 50 m
Very fast direct drives (180°/s)
Fisheye camera for panorama pictures
High-resolution overview and on-axis camera for precise aiming
Spotlight for measurements in poorly lighted environment
Leica vTarget for very fast relocation
Snap-on tripod mount for fast set-up
Auto-levelling in a range of ± 3°
WiFi connection to tablet
Protection class IP54 for indoor & outdoor
Li-Ion battery for a full working day
Mechanical theft protection with Kensington lock
